stable-diffusion-webui-distributed

This extension enables you to chain multiple webui instances together for txt2img and img2img generation tasks.

There is an emphasis on minimizing the perceived latency/lag of large batch jobs in the main sdwui instance.

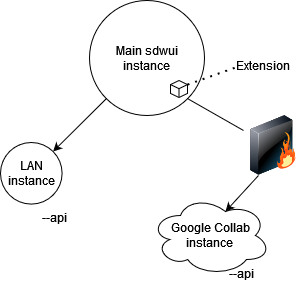

Diagram showing Master/slave architecture of the extension

Contributions and feedback are much appreciated!

Installation

On the master instance:

• Go to the extensions tab, and swap to the "available" sub-tab. Then, search "Distributed", and hit install on this extension.
• Ensure that you have setup your COMMANDLINE_ARGS include the necessary info on your remote machines. Ex:

set COMMANDLINE_ARGS=--distributed-remotes laptop:192.168.1.3:7860 argon:fake.local:7860 --distributed-skip-verify-remotes --distributed-remotes-autosave

On each slave instance:

• enable the api by passing --api and ensure it is listening by using --listen
• ensure all of the models, scripts, and whatever else you think you might request from them is present
  Ie. if you're using sd-1.5 on the controlling instance, then the sd-1.5 model should also be present on each slave instance. Otherwise, the remote will fallback to some other model that is present.

if you want to sync models and etc. between a huge amount of nodes you might want to use something like rsync or winscp

Usage Notes

• If benchmarking fails, try hitting the Redo benchmark button under the script's Util tab.
• You need to have all of the workers you plan to use connected when benchmarking for things to work properly (will be fixed later).
• If any remote is taking far too long to returns its share of the batch, you can hit the Interrupt button in the Util tab.

Command-line arguments

--distributed-remotes Enter n pairs of sockets corresponding to remote workers in the form name:address:port
--distributed-skip-verify-remotes Disable verification of remote worker TLS certificates (useful for if you are using self-signed certs like with auto tls-https)
--distributed-remotes-autosave Enable auto-saving of remote worker generations
--distributed-debug Enable debug information
